Further Information:

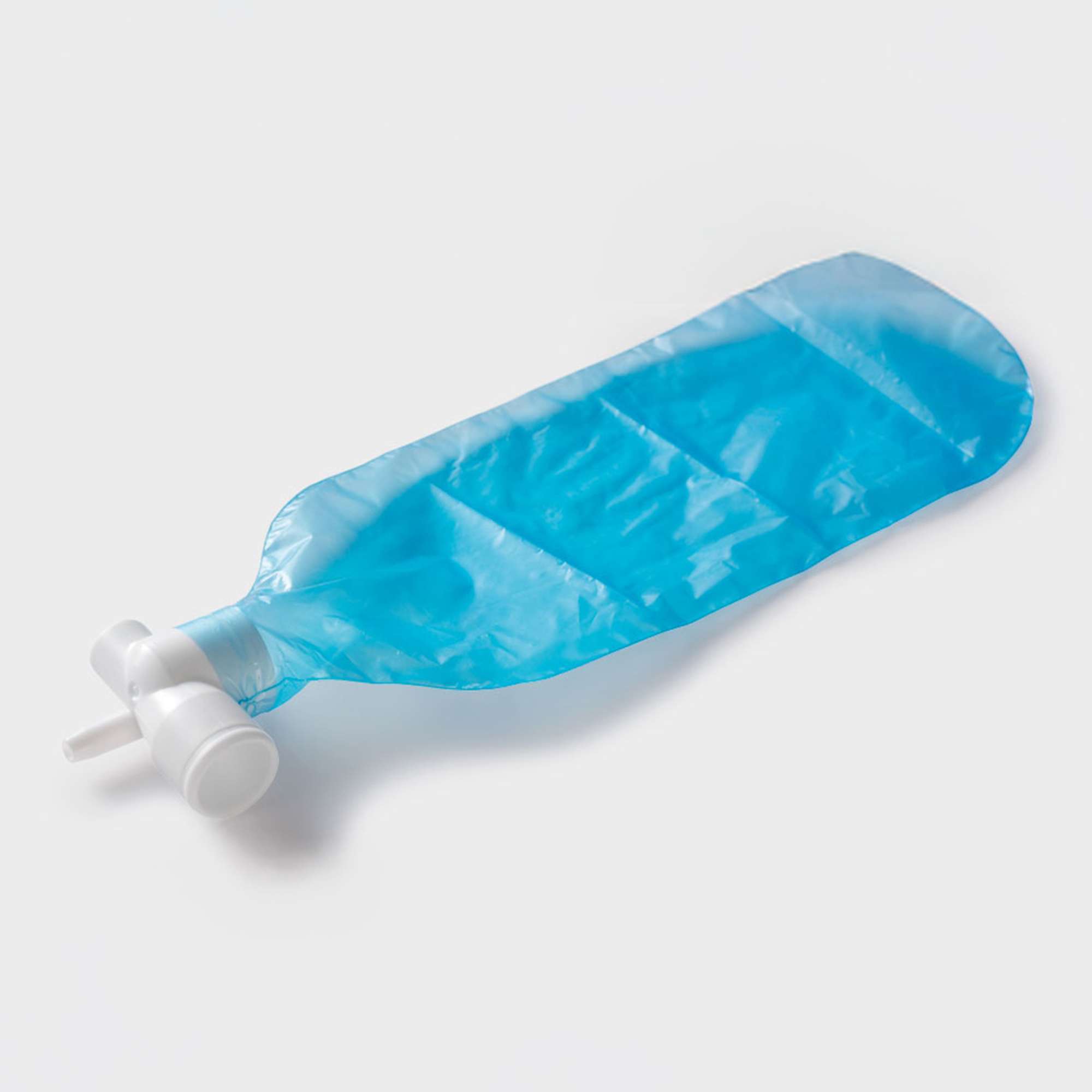

The product consists of a reservoir bag with a 300 ml capacity, attached to a 15 mm ID connector, which attaches to the connector of either laryngeal mask (LM) or endotracheal tube (ETT).

There is a 3 mm connector to attach the Oxygen tubing and 10 mm exhalation port which is open to the atmosphere. The device is attached to the ETT with an oxygen supply of 3 to 6 litres per minute. As the patient breathes in, oxygen is both available from the oxygen supply and the reservoir bag. On exhalation the expired gas is vented from the exhalation port. Any surplus oxygen fills the reservoir bag.

Features:

• Reliable Fi02 concentrations of 50% at 3L/min and 70% at 6L/min.
• Holds 300 ml of oxygen in its reservoir.
• No significant rebreathing.
• Visual indication of respiration.
• Lightweight.
