These devices are used to:

• Treat adult or pediatric patients with a tidal volume of more than 70 mL
• Reduce heat loss through the bronchopulmonary tree
• Help to prevent thickened secretions and changes in lung function
• Supply additional oxygen when required
• Facilitate the removal of secretions
• Preserve humidity and minimize damage to tracheal epithelial cells

Product Benefits:

• Simple opening port allows quick and easy access for a suction catheter to aid the removal of secretions.
• Integrated oxygen port that can provide up to 60% oxygen concentrations to the patient via the simplest of connections.

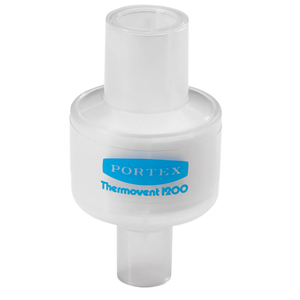

• Original Portex™ Thermovent T paper media provides high–level performance heat and moisture exchange to patient.
• Smooth, rounded edges aid patient comfort.

Specifications:

• Moisture Output: 25mg 1–1 H2O @ 15 breath/min–1 Tidal volume 500 ml
• Resistance to Flow:
– 0.3 hPa (cmH2O) at gas flow rate 0.5l/sec–1 (30l/min) [0.6cm H2O 1–1 sec–1]
– 0.7 hPa (cmH2O) at gas flow rate 1.0l/sec–1 (60l/min) [0.7cm H2O 1–1 sec–1]
– 1.2 hPa (cmH2O) at gas flow rate 1.5l/sec–1 (90l/min) [0.9cm H2O 1–1 sec–1]
• Dead Space: 11 ml
• Weight: 7.5 g
• Inspired Oxygen Concentration (%): 15 breath/min Tidal volume 500 ml O2 l/min: 1 2 3 4 5 6 7 8 9 10 O2%: 27 33 37 42 45 47 53 54 57 60
